用的扭力扳手一般有三種，分別是手動扭力扳手、電動扭力扳手和氣動扭力扳手:
There are generally three kinds of torque wrenches used, namely, manual torque wrench, electric torque wrench and pneumatic torque wrench:
一、手動扭力扳手。
1、 Manual torque wrench.
顧名思義，手動扭矩扳手是一種需要手動操作的扭矩扳手。以下是一些常見的手動扭矩扳手。
As the name implies, a manual torque wrench is a torque wrench that requires manual operation. The following are some common manual torque wrenches.
1、機械音響報警式；
1. Mechanical audible alarm type;
這種扭力扳手采用杠桿原理。在使用過程中，當扭矩達到設置的扭矩時，會發出機械碰撞的聲音，扳手會變成死角，防止過力。
This torque wrench uses the lever principle. In the process of use, when the torque reaches the set torque, there will be a sound of mechanical collision, and the wrench will become a dead corner to prevent excessive force.
2、數顯式&指針式（表盤式）；
2. Digital display&pointer type (dial type);
這兩種類型的扭力扳手的工作基礎都是在機械音響上報警提示，并且可視化作用力矩。
The working basis of these two types of torque wrenches is to give an alarm on the mechanical sound and visualize the acting torque.
3、滑動式(自滑動式)；
3. Sliding type (self sliding type);
這種扭手采用過載保護、自動卸載模式。扭矩到達設定扭矩時會自動卸下力量(也會發出機械碰撞的聲音)，之后扳手會自動復位，再用力時會滑動，避免過力。
The handle adopts overload protection and automatic unloading mode. When the torque reaches the set torque, the force will be automatically removed (and the sound of mechanical collision will also be heard), and then the wrench will automatically reset. When the torque is applied again, it will slide to avoid excessive force.
以上幾種手動扭力扳手中，機械音響報警時便宜，使用較多。
Among the above manual torque wrenches, mechanical audible alarm is cheap and used more frequently.
二、電動扭力扳手。
2、 Electric torque wrench.

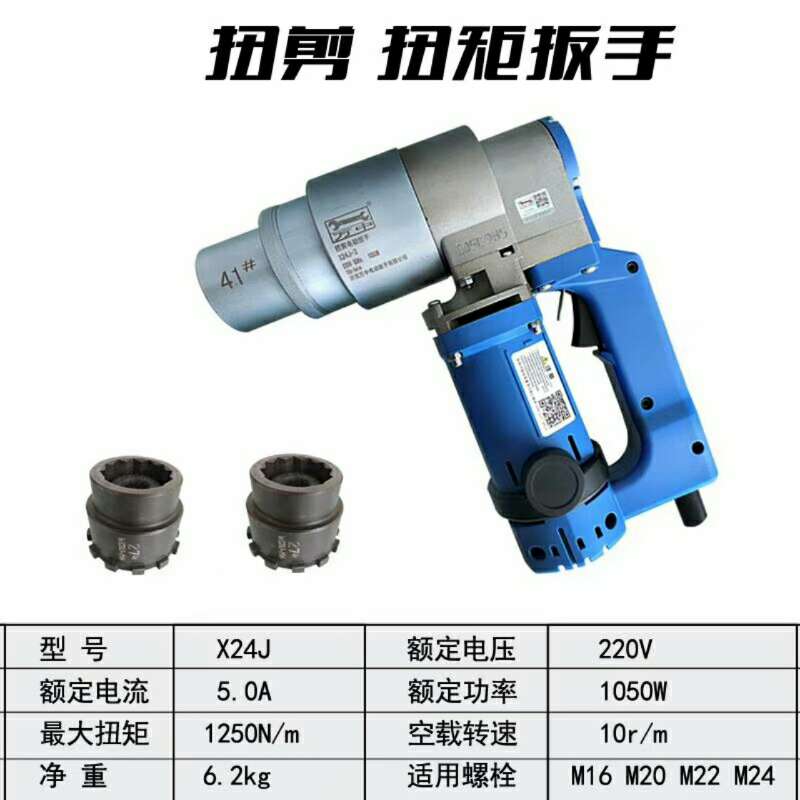

電動扳手是指能夠設定扭矩值的電動扳手。主要分為電流式和動態扭矩傳感器式兩種。
The electric wrench refers to the electric wrench that can set the torque value. It is mainly divided into current type and dynamic torque sensor type.
1.電流式；
1. Current type;
電流式扭力扳手判斷扭矩值的依據是電機擰緊過程中電流值的變化。在使用過程中，扳手達到預定扭力后，馬達會立即停止工作。
The current type torque wrench judges the torque value based on the change of current value during the motor tightening process. During use, the motor will stop working immediately after the wrench reaches the predetermined torque.
2、動態扭矩傳感器式；
2. Dynamic torque sensor type;
動力扭矩傳感器式是在擰緊軸上安裝傳感器，可以檢測扭力值的變化，一定達到預定的扭力，馬達就會停止工作。
The power torque sensor is installed on the tightening shaft to detect the change of torque value. The motor will stop working when the predetermined torque is reached.
電動扭力扳手具有精度高、使用壽命長、故障率低等優點，可以在很多領域發揮作用。
The electric torque wrench has the advantages of high precision, long service life, low failure rate, and can play a role in many fields.
三、氣動扭力扳手。
3、 Pneumatic torque wrench.
氣動扭矩扳手由壓縮機中的壓縮空氣作為空氣來源，以此驅動扭力扳手中的啟動電機，并讓齒輪擰緊螺栓，主要有油壓脈沖式、離合器式、動態扭矩傳感器式。
The pneumatic torque wrench uses the compressed air in the compressor as the air source to drive the starting motor in the torque wrench and let the gear tighten the bolts, mainly including oil pressure pulse type, clutch type and dynamic torque sensor type.
1、油壓脈沖式&離合器式；
1. Oil pressure pulse type&clutch type;
這兩種都是通過扭矩值達到設定值后自動斷氣，避免過度的力。
Both of them automatically cut off air after the torque value reaches the set value to avoid excessive force.
2、動態扭矩傳感器式；
2. Dynamic torque sensor type;
扭矩值達到設定值后，控制器控制電磁閥的斷氣，扳手停止，不能再用力，不能過度用力。
When the torque value reaches the set value, the controller controls the air cutoff of the solenoid valve, and the wrench stops. No more force or excessive force is allowed.
氣動扭力扳手中，油壓脈沖式因其無反作用力而受到很多人的歡迎，但不適合打軟連接螺栓。
Among pneumatic torque wrenches, the oil pressure pulse type is welcomed by many people because of its non reaction force, but it is not suitable for softening the connecting bolts.
